EQUIPMENT
DECK EQUIPMENT
Fuel and water deck fillers *Holding tank pump outs *Six recessed deck cleats *Electric anchor windlass with foredeck, flybridge and main helm controls *Self-stowing 60lb CQR anchor *40 meters chain *Self-launching and stowing bow roller *Coach roof sunbed recess with cushions *Patio doors *Deck locker in each bow *Stainless steel pulpit and guard rails *Full set of navigation lights *Riding light *Searchlight *Horn *Stainless steel rubbing band with plastic insert *Transom shore support socket *Aluminum folding passurelle to starboard stern *6 mooring warps *6 fenders *Set of window covers *Pair of foredeck hatches *Set of 6 large round opening portlights *6 oval portlights
ENGINES AND DRIVE SYSTEM
2xv12 MTU 1150hp engines *Sound-proofed engine rooms *Engine room extractor fans *Engine room intake fans with ram assist *GRP engine beds bonded into hull and stringer system *Engines flexibly mounted *Engine coupling to cardan shaft *120amp 2-pole alternators to each engine *Wet exhaust system with stainless steel spray heads *Twin Racor filters to each engine fuel system *Automatic bilge pump system *Engine room lighting *Engine room access from cockpit *Drive system Vosper Thornycroft Vospower 170 jet units *Computer control system to jet units comprising steering wheel, twin axis joysticks to flybridge *Steering wheel and single axis joystick to lower helm station *24v DC emergency back-up to lower helm station with secondary manual emergency back-up to flybridge *Manual /automatic fire extinguisher to each engine room
DOMESTIC EQUIPMENT
Reverse-cycle air conditioning to all areas *4-burner electric halogen hob c/w overhead extractor *Electric combination oven/microwave *180ltr fridge/freezer *3 fire extinguishers *Radio/tape/CD player with 4 speakers in saloon, 2 on flybridge *14" combined TV/VCR with omni-directional antenna
ELECTRICAL SYSTEM
24-volt
400amp/hr domestic battery bank *Two banks of engine start batteries *Engine alternators charging via relay system *Remote isolation of all battery banks from main switch panel *3-bank battery charger *Custom distribution panel with volt/amp and charger gauges *Circuit breakers to all circuits
220/240 OR 110v AC
20 Kw generator in soundshield with super quiet exhaust system *Shore support system c/w 15m lead *Polarity check light *Earth leakage safety trip *Circuit breakers to all circuits *Generator/shore changeover system on switch panel *Sockets to all cabins, galley, saloon and dining areas
FUEL SYSTEM
Two off marine grade aluminum water tanks *Calorifier water heating system with immersion heater *Two off high output water pumps with automatic switching *Deck filler to each tank *Water tank level gauges *All taps mono-bloc single level mixer *Shower pump outs *Deck washdown system *City/shore water system
TOILETS
Electric vacuum toilets *Two off holding tanks with deck pump-out facility *Overboard discharge pumps to each holding tank *Holding tank level gauges
BILGE PUMPS
Automatic electric bilge pumps with float switches (6 in total) with manual over-ride *Bilge pump controls and warning lights to lower helm station *Warning light and audible alarm to flybridge
|
EQUIPMENT
HULLS
Advanced asymmetric hull form designed for jet drive unit s with constant deadrise sections. The high bridgedeck is faired into the hulls for efficient water clearance. Sophisticated chine and spray rail system. The hull is a one-piece molding employing a Kevlar based hybrid construction system both under and over a complete stringer and rib integrated structure.
SUPERSTRUCTURE
The deck, coachroof and cockpit are a one-piece molding using a combination of a Kevlar based hybrid FRP construction system together with rib and sandwich stiffening. The deck molding is bonded to the hull with a similar lightweight laminate, which is increased at high load points with a mixture of complex woven rovings. The boat is completed by integral foam cored composite bulkheads between the hulls and deck providing a strong and lightweight structure.

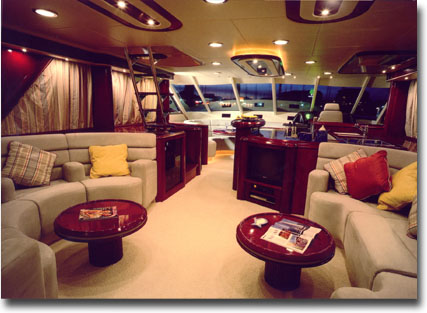

INTERIOR
Choice of three standard layouts *Interior by Ken Freivokh *Italian halogen downlighters and concealed lighting *Avonite worktop surfaces to galley *Avonite surfaces to bathroom sinks *High quality lining materials to headlinings *High quality fabrics used for soft furnishings *All wood laminates finished in clear lacquer
AFT DECK
Self draining with access doors to stern steps *Access to engine bays *Cockpit lighting *Cockpit cover *Electrically powered stern docking windlasses port and starboard *Aluminum folding passurelle to starboard stern steps *Stainless steel swim ladder to port stern step *Stainless steel and teak access ladder to flybridge *Hot and cold shower adjacent to swim ladder
LOWER HELM AREA
Three-seat helm seat *Stainless steel toughened glass windscreen *4 wipers with washers *Engine instrument panel with gauges for fuel engine temperature, oil pressure, voltage and tachometer for each engine *Warning lamps with audible alarm *Jet control panel, joysticks and steering wheel *Hydraulic engine controls *Two banks switches for navigation lights, horn, wipers and washers *Cetrek C-Net log echo sounder and compass *Cetrek 780 Autopilot *Cetrek 390 Chartplotter *Shipmate VHF *Furuno 1831 Radar *Bilge pump control panel with audible alarm *Depth sounder *All navigation equipment interfaced where possible *Anchor windlass control switch *24v DC switch panel *A/C switch panel
FLYBRIDGE
Engine instrument panel with tachometers and fuel gauges *Hydraulic engine controls *Repeaters to log, echo sounder, compass autopilot and plotter *Bank of switches for navigation lights and flybridge lighting *VHF handset *Horn *Searchlight *Bilge pump visual and audible alarm *Jet controls and steering wheel *Two helm seats and seating for eight people *Wind deflectors *Two speakers linked to saloon stereo system *Antennas and aerials for VHF radio, telephone, GPS, Radar, TV/stereo *Navigation lights *Concealed lighting covers for instrument panels and engine controls *Manual flybridge crane *Canvas console cover *Magnetic back-up compass
|
